Description

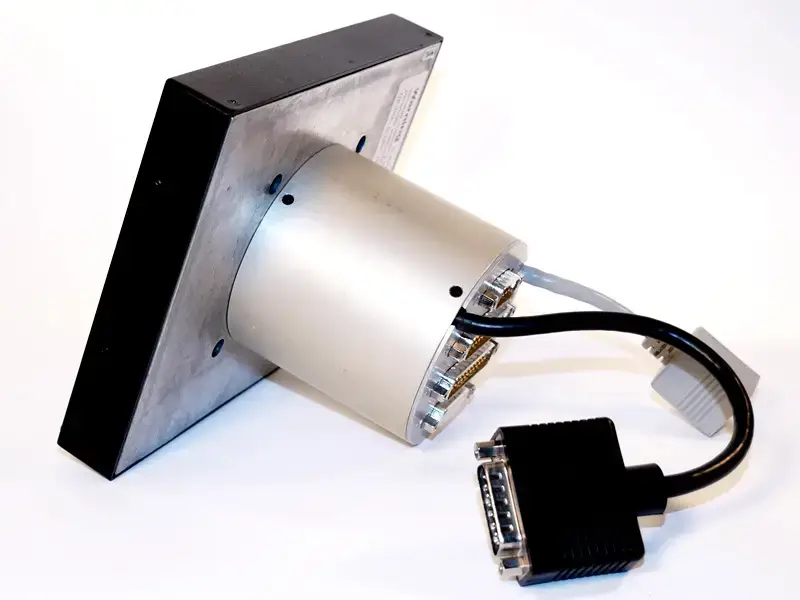

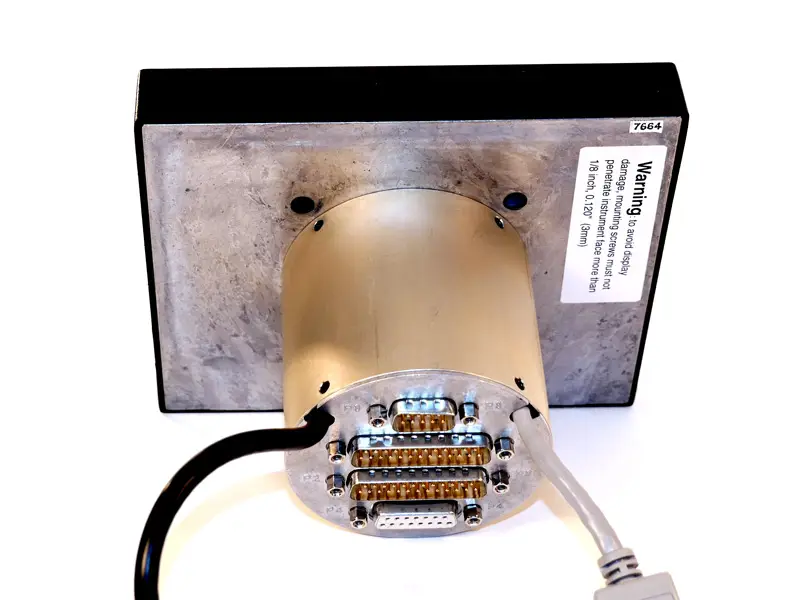

JPI EDM-930

The EDM-930 comes standard with a full-color VGA bar chart that supports inclination (ROP/LOP). In addition, the bar chart has a ‘normalised’ and digital display of EGT and CHT over each column and in the message area on a single screen. . No other bar chart in the industry offers even close to the number of features that the EDM-930 offers: 39. All can be added and displayed.

Specification: 6,18′′ x 5,17′′ behind the panel.
Front 5,53′′ x 4,74′′ x 0,9′′ deep with 2,8′′
1°F resolution. Linearized accuracy of 1 degree not (1/2 % = 10 degrees).
TFT display with direct and indirect sunlight, 1,000 nits.
Operating from 7.5 to 35 volts or 1/2 ampere.

The set includes:

• RPM Prop sender
• MAP Manifold Press Subtract $195 not req.
• EGT &haust Gas Temp. ea Cyl..
• CHT Cylinder Head Temp. ea Cyl.
• 0-T Oil Temperature primary location
• O-P Oil Pressure
• OA T Outside Air Temp.
• Fuel Pressure (Optional on EDM-900)
• VDC Voltage(1)
• AMP Current amps (2 twins)
• Fuel Flow Transducer FloScan
• Remote display (RAD) or (RAL)
• % HP Percent of Horse Power
• USB Memory stick 1 GB
• Data Recording 600 Hrs every 6 sec.
• EZTrends Charting and download Software free
• Pre-Wired Harnesses for all functions
• EGT Normalize mode
• LOP/ROP JPI &clusive Leaning Mode
• Flight timer
Tach Hobbs
• Local time
• Zulu time
• Data recording
• USB port
• fxtemal Caution Lights
• GPH Gallons per Hour GPH
• REQ Required to wp or destination
• USD Fuel used
• H:M Endurance Hours & Minutes
• MPG Mi/es per Gai
• CLD Shock Cooling on ALL cylinders
• DIFF Difference between EGT's
• 3 year Warranty

Optional:

TIT Turbine lnlets Temp.(2)
F-P Fuel Pressure
F-P Differential Fuel Press. CRB Carburetor Temp.
CDT Compressor Discharge IAT lnduction Air Temp.
Volts pick-up V-2
Amps 2
L/R-Tank Fuel Quantity module L/R-Aux Fuel Quantity module Fuel Quantity senders frequency
Frequency fuel level
